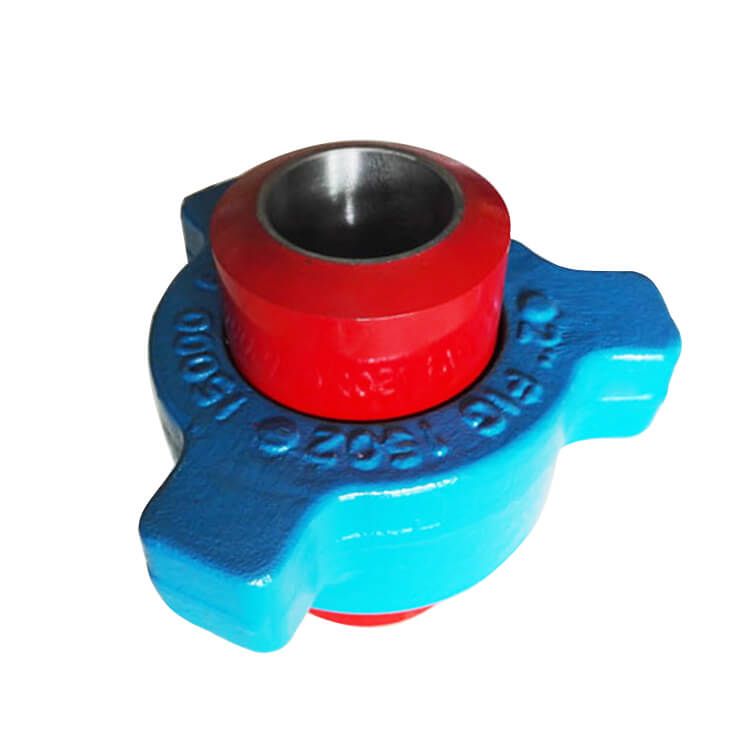

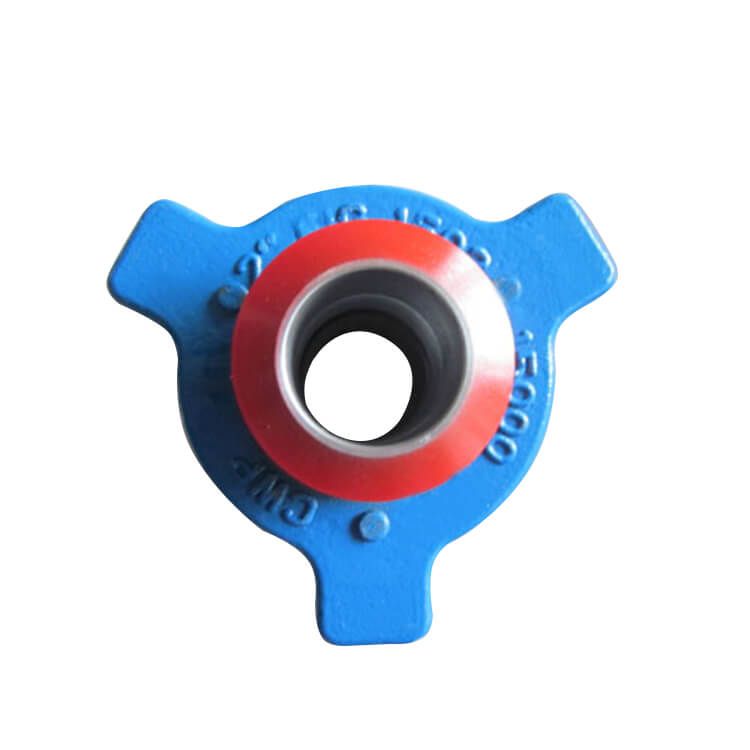

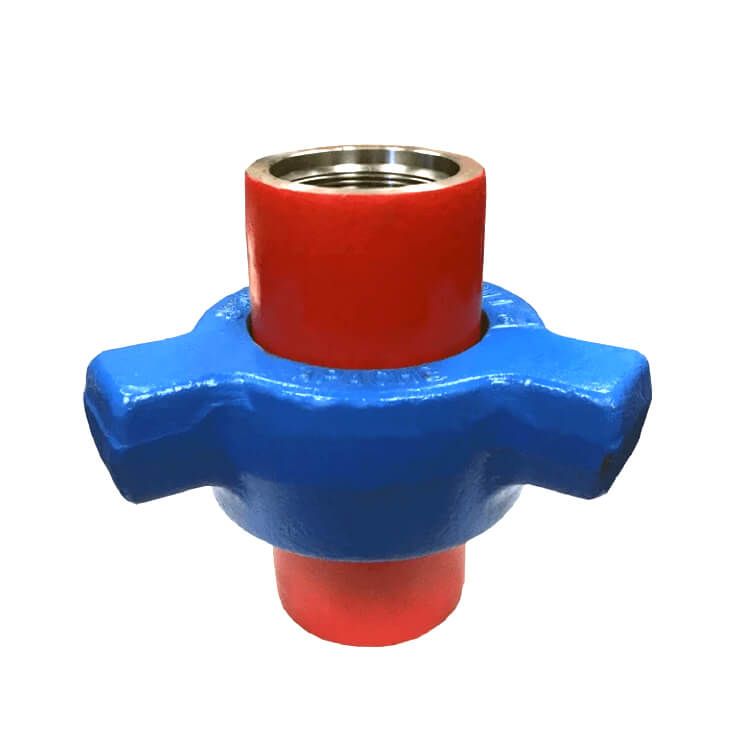

Hammer Union Fig 1502 Pipe Fittings Union Connector for Oil Pipeline

Quick Details
Place of Origin:Shandong, China
Model Number:2″ 3″ 4″
Material: Alloy
Technics:Forged
Connection:Female
Shape:Equal
Head Code:Hexagon
componment:female, male ,nut
connection:threaded, welded, flange
Certificate:ISO 9001
pressure:7MPa~140MPa
Application:Oil and gas
Color:Required
Product name:union
OD:100mm-200mm
Packaging & Delivery
Selling Units:Single item
Single package size: 40X40X30 cm
Single gross weight:20.000 kg
Package Type:
Plastic bubble bag, export wooden carton, withshipping mark,or as customer’s request
Lead Time :

Quantity(Sets)	1 – 1	>1
Est. Time(days)	20	To be negotiated

Product Description

Application

The Hammer Union can be used for many kinds of hoses, cementing trucks, and hose pipes in oilfield. It is an important part for transporting water, oil, fracturing fluid and mixed fluid or sand. These products are made of high quality carbon steel by forging and cutting. They have high mechanical performance and sealing features. Especially when they operate under the bad weather situation. They can be assembled fixed easily and conveniently. Main technical parameter model number collecting norm working pressure, structural length drift diameter. The product adopts to end connections of pipeline thread, tubing thread, butt-weld.

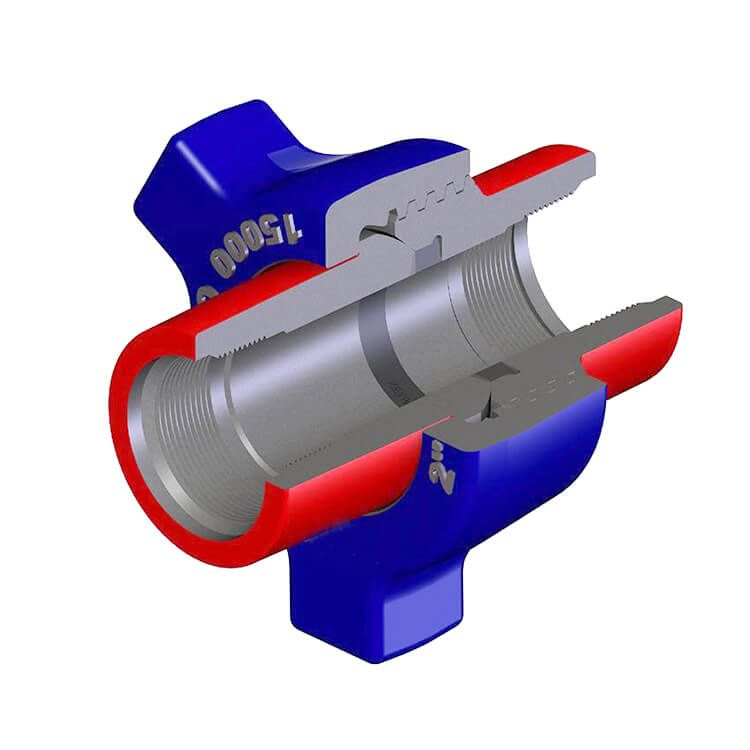

The wing nuts and right ACME will ensure quick installation or dismantling without special tools, so it ir fast installation

Type:

We can provide various types of hammer unions based on the introduced technologies from different countries,including welding type, thread connection type, and H2S service unions.1″-8″ and CWP of 1000psi-20,000psi unions are available. For easy identification,unions with different working pressure ratings will be painted in different colors,and there are evident marks indicating size,connecting mode and pressure rating.

Seal rings are made of high quality rubber compound which greatly enhance load-bearing capacity and sealing performance and protect connectors from corroding.Different pressures and applications have different sealing methods.

The Hammer Union type: Figure 100, Figure 200, Figure 206, Figure 300, Figure 400, Figure 600, Figure 602, Figure 1002, Figure 1003, Figure 1502 and Figure 2002, figure 2202
Parameter

FIG 100

Size		Weight	A	B	C+	TPI*	Material
(Inches)	(mm)	(LBS)					Nuts	Sub
2	50	6.25	3.94	2.84	6.25	3 MOD	Steel Forging A105
3	80	13.65	4.9	4.1	7.8	3 MOD
4	100	22	5.7	5.2	8.9	3 MOD
6	150	45.85	6.8	7.39	13.81	3 STD	Steel Casting	Steel Forging
								A105
8	200	66.65	7.23	9.7	16.125	3 STD	Steel Casting	Steel Forging
								A105
*TPI-Threads per inch.

FIG 200, 206

* socket weld and butt weld are also available

Size		Weight	A	B	C+	D**	TPI*	Material
(Inches)	(mm)	(LBS)						Nuts	Sub
1	25	1.75	2.8	1.6	3.8	**	6 STD	Steel Forging A105
2	50	4.9	3.5	2.9	5.8	**	4 STD
3	80	13.25	4.5	4.1	7.8	**	4 STD
4	100	18.35	5	5.1	8.9	**	3 STD
6	150	46	6.61	7.41	12.8	**	3 STD	Steel	Steel Forging
								Casting	A105
8	200	68	7.24	9.65	13.75	**	3 STD	Steel	Steel Forging
								Casting	A105
TPI-Threads per inch. *Weld Ends-Consult Factory.
