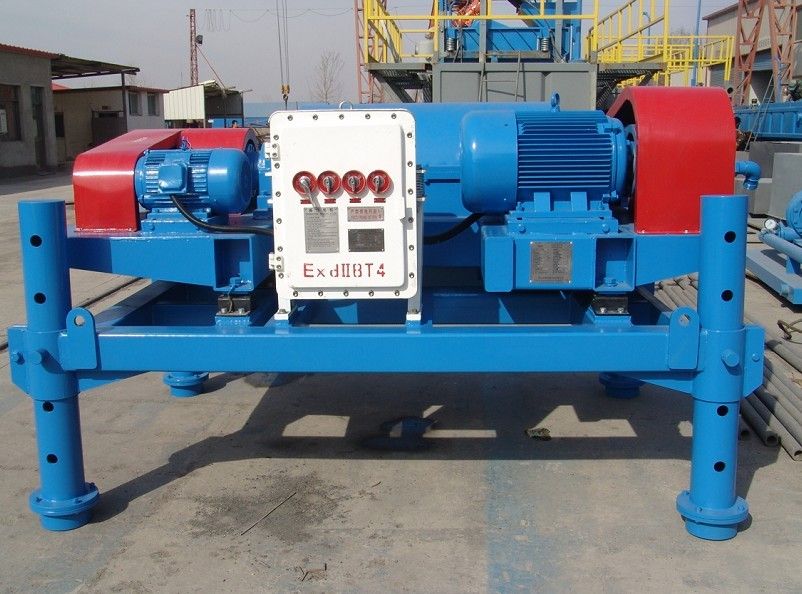

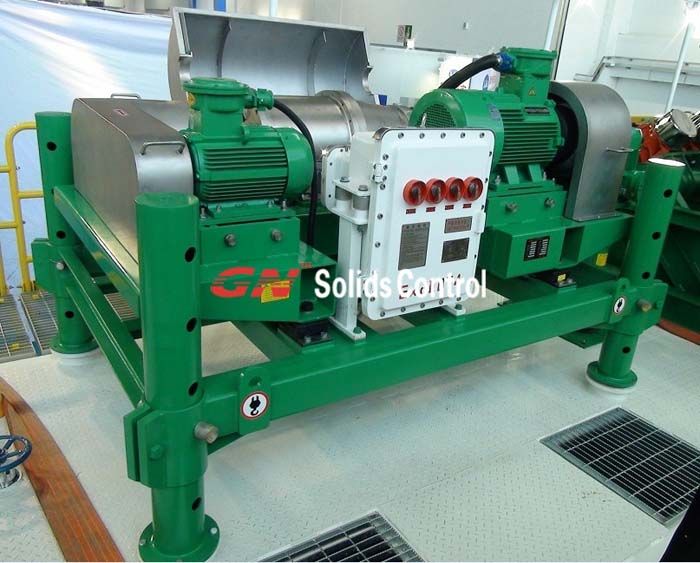

Decanter Centrifuge for Oil Drilling Model Model Lwf4501000n Glw3551250n Glw-V 355*1250n

Product Description

LW series is a normal decanting centrifuge mode of our company, they are ideal choices for separating particles in drilling mud. Decanting Centrifuge separate the suspending fluids using  the principle of centrifugal action, the suspending fluids is pushed into the rotor drum through the inlet pipe and the fluid hole of the spiral feeder. Under the influence of centrifugal force, solid phase particles are pushed to the internal wall of the drum, then to the mud export of the small end of the drum and excreted. But the fluids is excreted from the overflow hole of the large end. Such cycle is in order to achieve the purpose of continuous separation.High speed decanting centrifuge are effective for separation.
LWF Decanting Centrifuge Technical Parameters
(High speed decanter centrifuges  3200r/min  and variable speed oilfield centrifuge are available)

Features of Decanter Centrifuge

• Southwest Petroleum University Technology Support
• High Speed up to 3200RPM & Variable Speed by frequency converter
• The main body of the decanter centrifuge made from stainless stee:SS304/SS316/Titanium Alloy
• The screw propeller and solids discharge made from stainless steel Stainless Steel protected by tungsten carbide alloy.
• German FAG/SKF Brand Bearings
• Screw propeller & Solids Discharge Stainless Steel protected by  tungsten carbide alloy.
• Solids Liquid separation system package available
• Electrical Components: SIEMENS/Schneider/ CHINT

Decanter centrifuge are used to process un-weighed and weighed, water-based and oil-based drilling fluids (muds). Mechanical energy is utilized to increase the gravitational force exerted on solids that are present in the mud system. oilfield Decanting Centrifuge are able to apply over 3,000 G-forces on the liquid/solids mixture, which separates the heavier solids from the lighter solids. Additionally, high G-forces separate fine solids from liquid.
Mechanical separation of solids from the mud system through the use of a decanter centrifuge is a highly-effective means of maintaining proper mud weight and viscosity. When used in conjunction with other Solids control equipment, decanting centrifuge enable users to maintain the mud properties within the prescribed range as per the drilling program. Typically,oilfield decanting centrifuge is the final processing units in the arrangement of solids control equipment. Decanting centrifuge preceded by gas busters, gumbo removal equipment (if utilized), shale shakers, mud Cleaners (if utilized), Vacuum degassers and hyrdocyclones.
