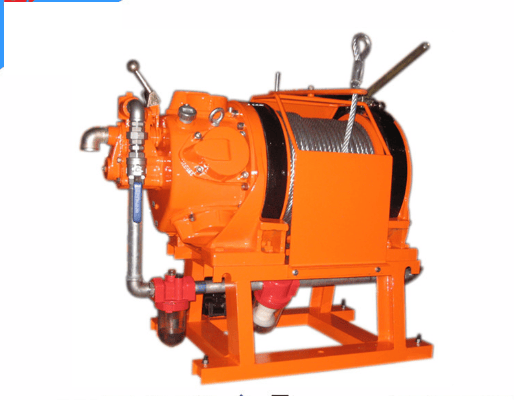

XJFH-5/35KZP series auto ropepneumatic winch is a newly developed winch with automatic rope arranging mechanism, which solves the problem of the automatic rope arranging winch.XJFH-5/25KZP autorope winch can be used as explosion-proof traction, lifting power device, especially suitable for oil fields (including the ocean), geological drilling, mining and flammable and explosive gas The characteristics of XJFH-5/35KZP type auto rope winch are as follows:
compact structure, small volume, light weight;
stepless speed;
Easy to operate, can be reversed;
The safety, reliability, especially suitable for flammable, explosive gas;
Starting torque is large, can be started with load
Simple and convenient maintenance, smooth operation;
automatically discharge, a rope.
| item | specificaton |
| model | XJFH-5/35 |
| Max lifting force(lb) | 11240 |
| Max lifting speed(ft/s) | 1.3 |
| Rated power(H.P) | 21.5 |
| Air pressure( psi) | 116 |
| Air consumpiton(scfm) | ≤653 |
| Wire capacity(ft)) | 360 |
| diameter(in) | φ0.787 |
| brake | hand brake and auto brake |
| overrall dimension(in) | 53×33×47.7 |
| weight(lb) | 1540 |
Note: winch can be equipped with other types of base: flange seat (XJFH-5/35KFZP), T type buckle seat (XJFH-5/35KTZP), ear plate seat (XJFH-5/35KEZP) and so on)
