Quick Details
Place of Origin:Shandong, China
Power Source:Hydraulic
Application:CRANES
Capacity:5-300kn
lifting pressure:16Mpa
Laximum pump flow:62L/min
Rope speed (flow 45L/min):40m/min
Motor displacement:200cc/r
Rope capacity:130m
recommended wire rope diameter:12mm
transmission ratio:1:5
Oil port A/B:M33
Oil port O/P:M10
weight:98kg
Supply Ability
Supply Ability:100 Set/Sets per Month
Packaging & Delivery
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port:Qingdao
Lead Time :
| Quantity(Sets) | 1 – 1 | 2 – 3 | 4 – 10 | >10 |
| Est. Time(days) | 3 | 5 | 7 | To be negotiated |
Product Description

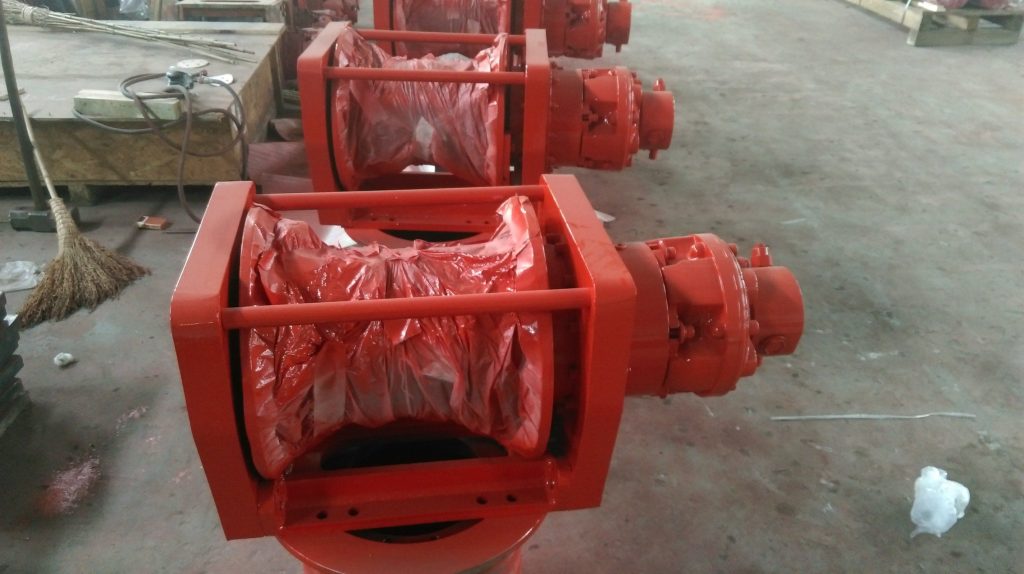

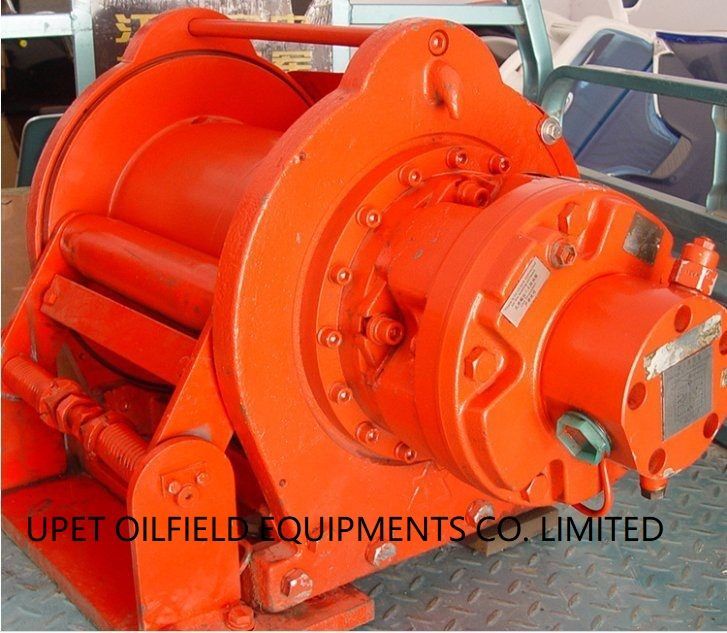

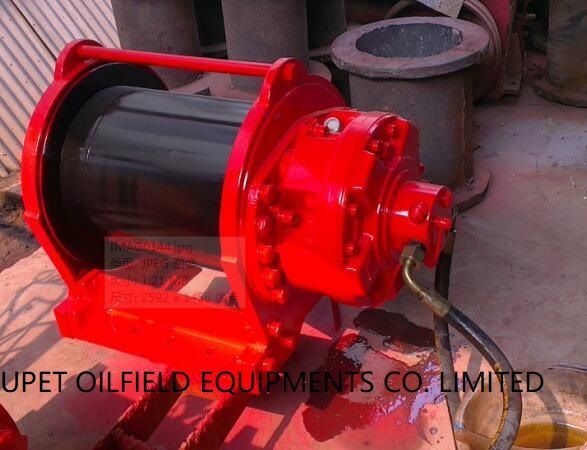

ST series hydraulic winch is composed of cycloid motor, planetary gear reducer, brake and so on.Which can be widely used in all kinds of lifting equipment, such as railway locomotive and truck crane, ship, oil field drilling, coal mine, port, small engineering machinery and so on.
This hydraulic winch is a lifting equipment driven and braked by hydraulic. It has the advantages of compact structure, light weight, convenient operation and stable lifting. It is used to lift heavy objects in drilling, mines, ports and building engineering.
