Quick Details
Warranty:1.5 years
Condition:New
Applicable Industries:Energy & Mining
Type:F Mud Pump Parts
Model Number:F1600
Power rating HP/KW:1600/1193
Gear Ratio:4.206
Valve:API 7#
Certificate:API & ISO9001
Stroke rating SPM:120
Inlet. dia (in/mm):12″/305
Outlet. dia.(in):5-1/8″ flange 5000psi
Supply Ability:10000 Piece/Pieces per Month Triplex Mud Pump Liner Ceramic Cylinder Liners
Packaging & Delivery
Packaging Details Standard export packaging
Port Tianjin, Qingdao, Shangha

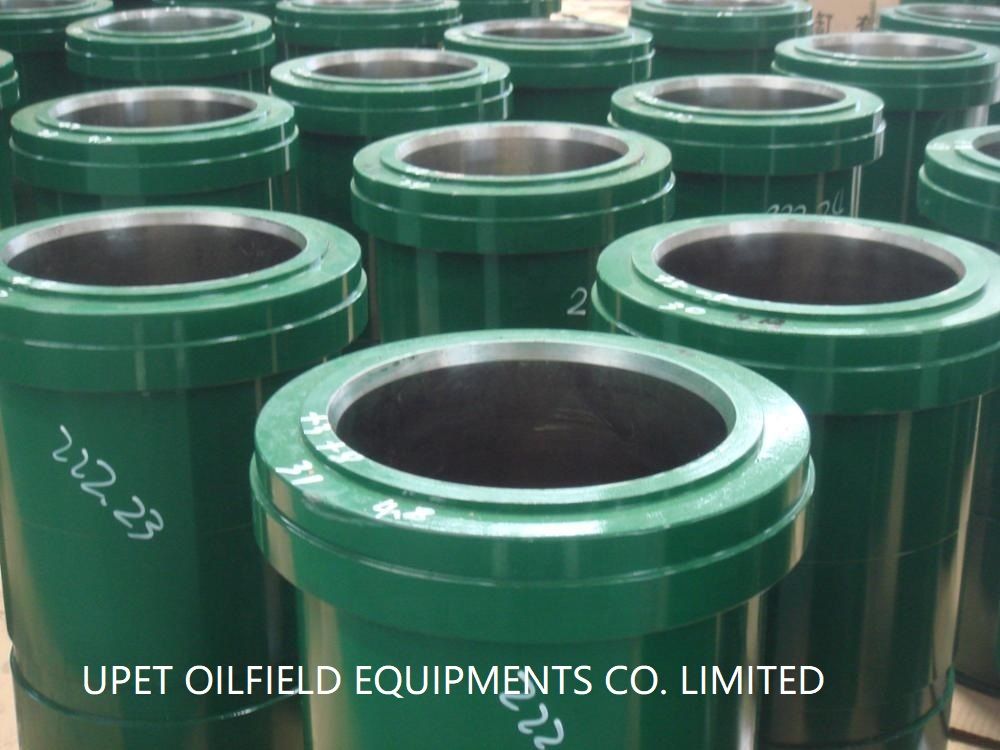

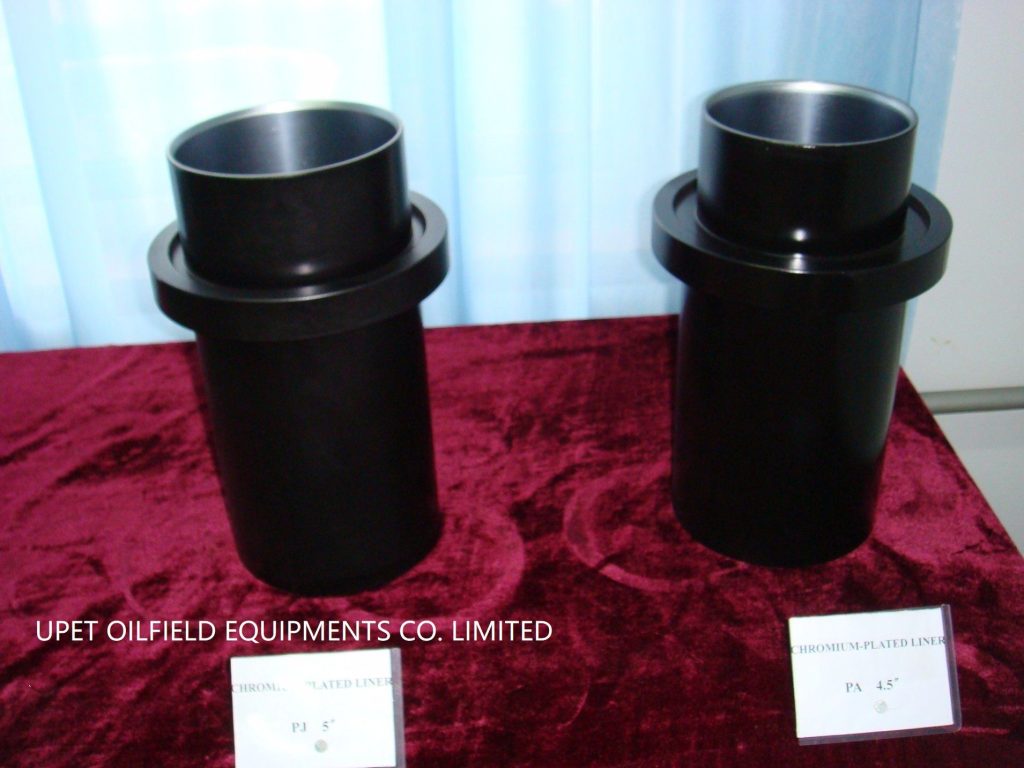

Triplex Mud Pump Liner Ceramic Cylinder Liner for BOMCO, EMSCO, Garden Denver, IDECO Pumps
Mud pump fluid end parts are interchangeable with abroad brands, such as BOMCO, EMSCO, IDECO, OILWELL, GARDNER DENVOR, NATIONAL, SKYTOP, OPI, WIRTH, WILSON pump parts.
Bi-metal Liner
Material: The material of cylinder liner is ZG45 steel, lined with high chromium cast iron. The HRC of cylinder inside liner is 60-65;
Production Process: The bi-metal cylinder Liner of our company combined with the advantages of abrasion hot-forging out liner and anticorrosion high chrome inner liner. The out liner is made of high quality carbon steel by hot pressing forming. Its tensile strength is over 900000psi. The inner liner is made of high-chromium alloy by centrifugal casting.
Ceramic Liner
Ceramic liner widely used in tough environments such as deep oil reservoirs, hard stratum, and offshore oil and natural gas exploitation.
The service life is 5 times higher than bi-metal liner, up to 4000 hours.
Zirconia ceramic liner has various advantages, such as wear-resistance, erosion-resistance, high pressure-resistance, high hardness, and so on.
It can improve drilling efficiency and reduce the cost of maintenance and labor.
