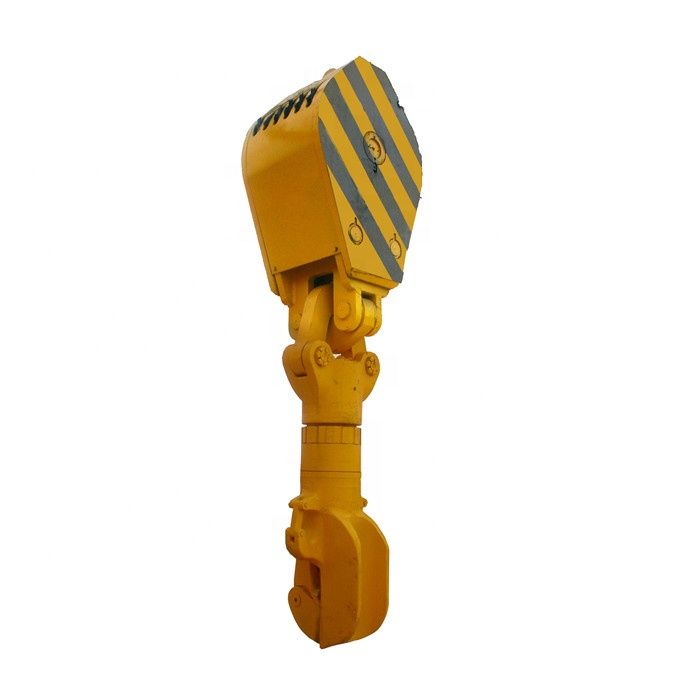

1.The lateral plate is thick section iron plate with heavy enough weight. The wirerope is always in tension while lifting and lowering empty elevator, which easier drum whipping and the speed control of lowering empty hook also can prolong the service life of wirerope.
2.Pulley groove is medium-frequency quenched to improve the surface hardness in order to prolong the service life.
3.All the pulleys are equipped with double cone roller bearing, each with independent lube pipe.
4.Queenched and tempered alloy steel shaft, with single pulley bearing lubricant grease hole.
5.Heavy duty wirerope protecting cap.
6.High strength wirerope elevator
7.The sheaves and bearings are interchangeable with those of matching Travelling Block.
8.The travelling block confirm to API Spec 8A regulations, and API monogram is permitted to be used.
| Model | YG135 | YG170 | YG225 | YC225 | DG225 |
| Max.hook load kN | 1350 | 1700 | 2250 | 2250 | 2250 |
| O.D.of sheaves mm(in) | 760(30) | 915(36) | 1120(44) | 1120(44) | – |
| Number of sheaves | 4 | 5 | 5 | 5 | – |
| Dia meter of wire line mm(in) | 29(1 1/8) | 29(1 1/8) | 32(1 1/4) | 32(1 1/4) | – |
| Major-hook opening mm | 150 | 180 | 190 | – | 190 |
| Spring travel mm | 170 | 140 | 180 | – | 180 |
| Overail dimension(L×W×H)mm | 2946×836×652 | 3402×950×640 | 3450×970×660 | 2294×1190×630 | 2545×780×750 |
| Weight kg | 3126 | 4594 | 4732 | 3713 | 2180 |
| Model | YC315 | DG315 | YC450 | DG450 | YG450 |
| Max.hook load kN | 3150 | 3150 | 4500 | 4500 | 4500 |
| O.D.of sheaves mm(in) | 1270(50) | – | 1524(60) | – | 1524(60) |
| Number of sheaves | 6 | – | 6 | – | 6 |
| Dia meter of wire line mm(in) | 35(1 3/8) | – | 38(1 1/2) | – | 38(1 1/2) |
| Major-hook opening | – | 220 | – | 220 | 220 |
| Spring travel | – | 200 | – | 200 | 180 |
| Overail dimension (L×W×H)mm | 2680×1350×974 | 2953×890×830 | 3075×1600×800 | 2950×890×880 | 4887×1600×880 |
| Weight | 6842 | 3410 | 8135 | 3496 | 12530 |
Quick Details
Condition:New
Applicable Industries:Energy & Mining
Place of Origin:Shandong, China
Type:Traveling Block
Machine Type:Drilling Tool
Certification:API
Material:Carbon Steel
Processing Type:Casting
Use:Well Drilling
Max. hook load (kN):110
O.D. of sheaves in (mm):760
Number of sheaves:4
Wire line Dia. In (mm):26mm
Major-hook opening (mm):150
Spring travel (mm):150
Supply Ability
Supply Ability:100 Set/Sets per Month
Packaging & Delivery
Packaging Details:WOODEN CASE, IRON CASE OR AS PER REQUIREMENTS
Port:Qingdao
Lead Time :
| Quantity(Sets) | 1 – 1 | >1 |
| Est. Time(days) | 30 | To be negotiated |
