Product Description

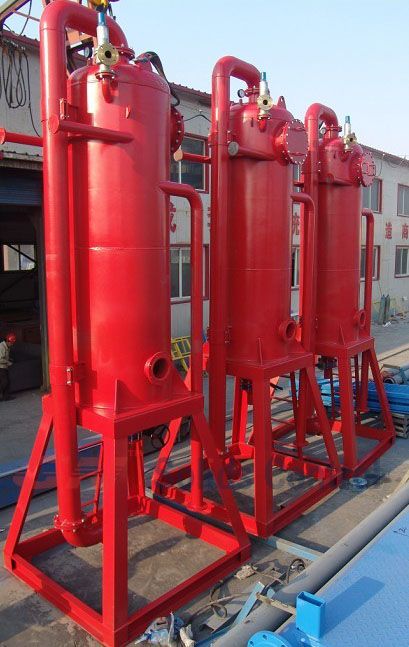

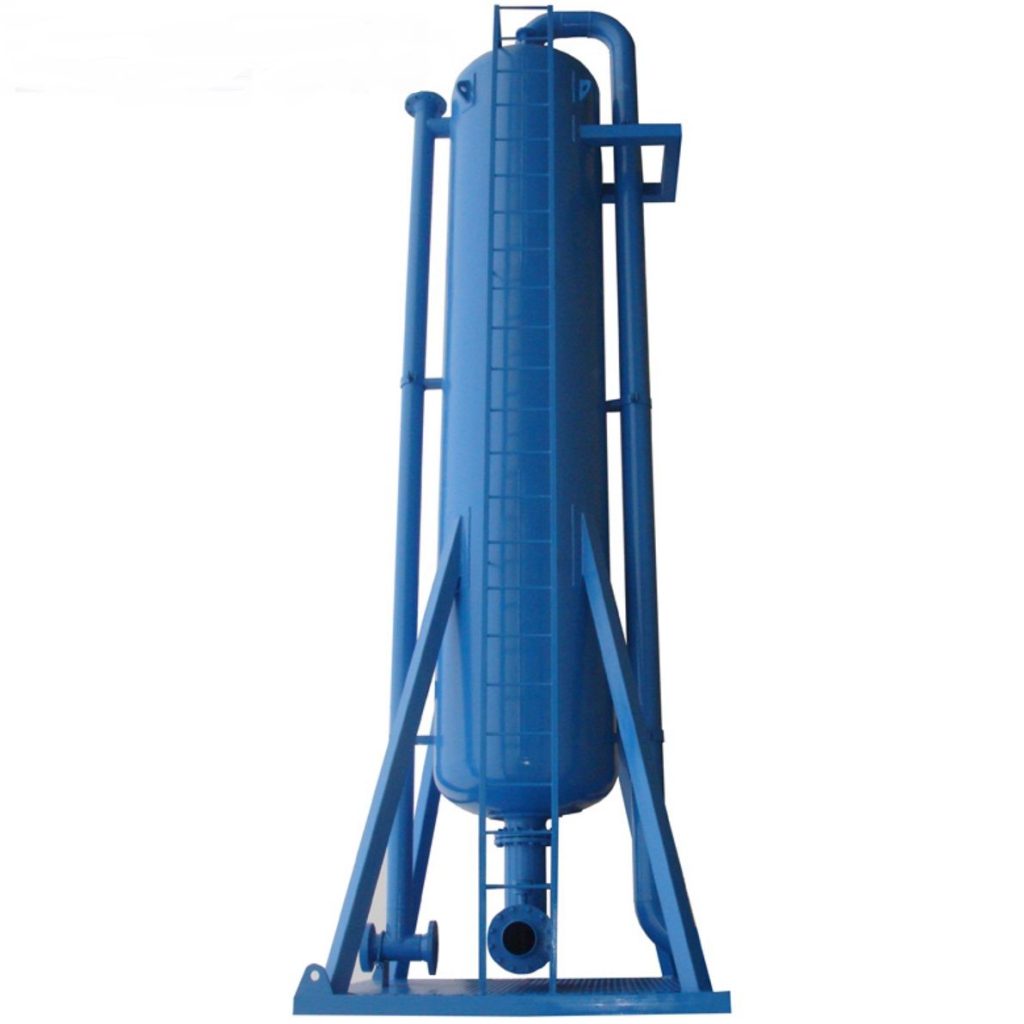

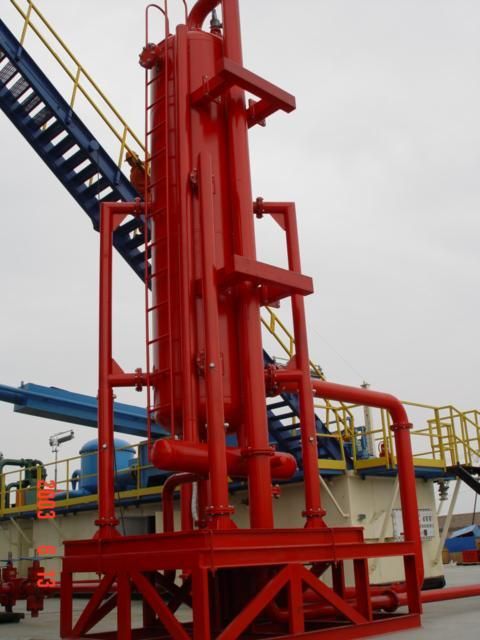

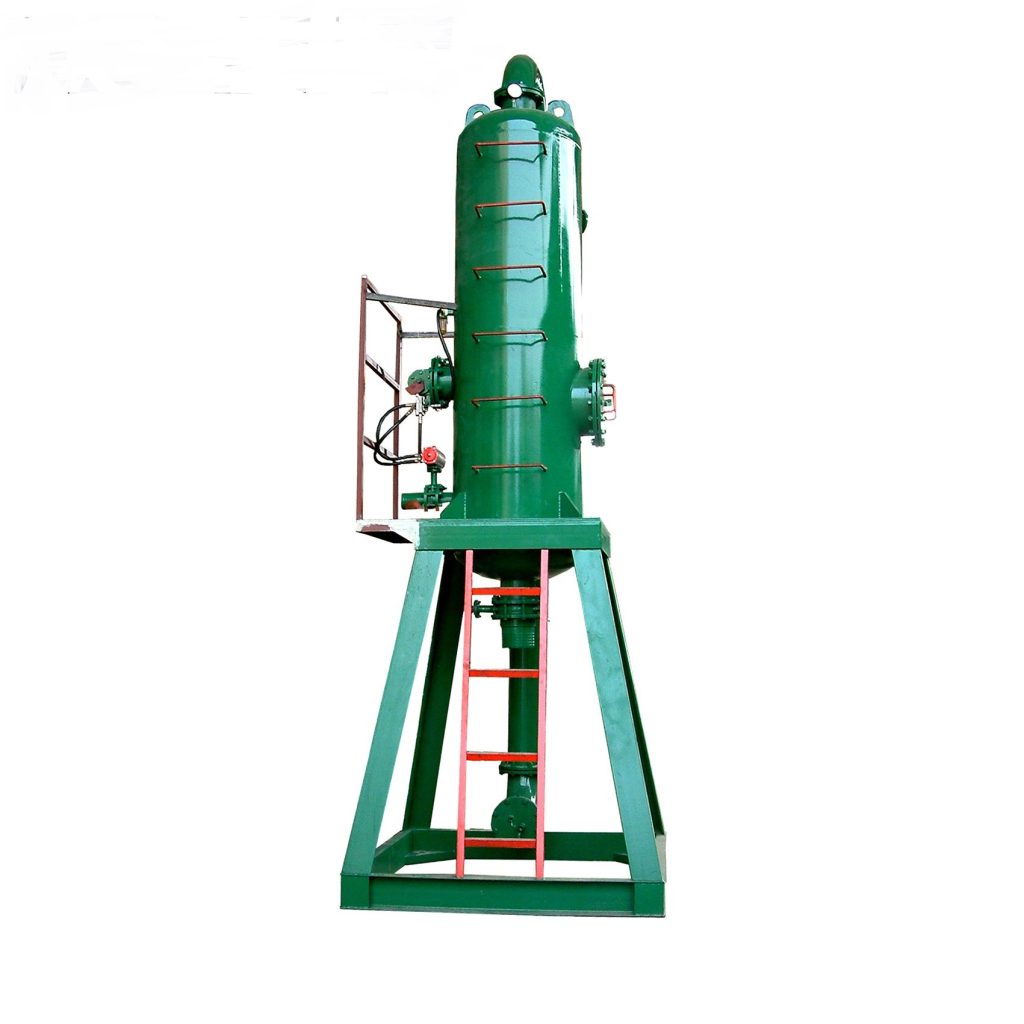

ZYQ series Mud gas separator(Poor Boy Degasser) is professional equipment to treat the gas invade mud. When the drilling mud result gas invade, the proportion of its weight and viscosity have a greater deviation not to meet the requirements of drilling. The serious situation is that would cause Chung well, and even blowout accident occurred, if not to treat it timely. ZYQ series Mud gas Separator combined with the Electric Ignition Device can be used to ensure the drilling process smooth. It is divided into the normal pressure Mud gas separator and pressure auto-control Mud gas separator, according to the pressure. Mud gas Separator is your best choice to prevent drilling mud invasion.
ZYQ series Mud gas separator Technical Parameters
Model ZYQ800 ZYQ1000 ZYQ1200
Main body diameter 800mm 1000mm 1200mm
Capacity 180~260m3/h 240~320m3/h 260~380m3/h
Inlet pipe 5″ 5″ 5″
Output pipe 6″ 8″ 10″
Gas discharge pipe 6″ 8″ 8″
Weight 1600kg 2000kg 2000kg
Dimensions 1900×1900×5700mm 2000×2000×5860mm 2200×2200×6634mm
