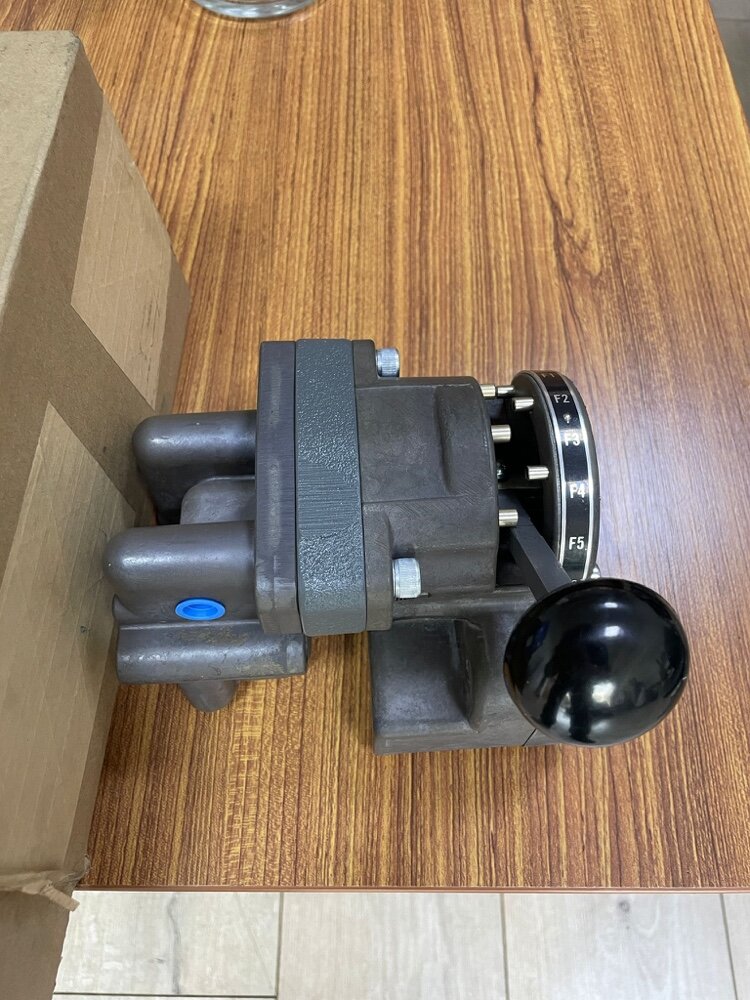

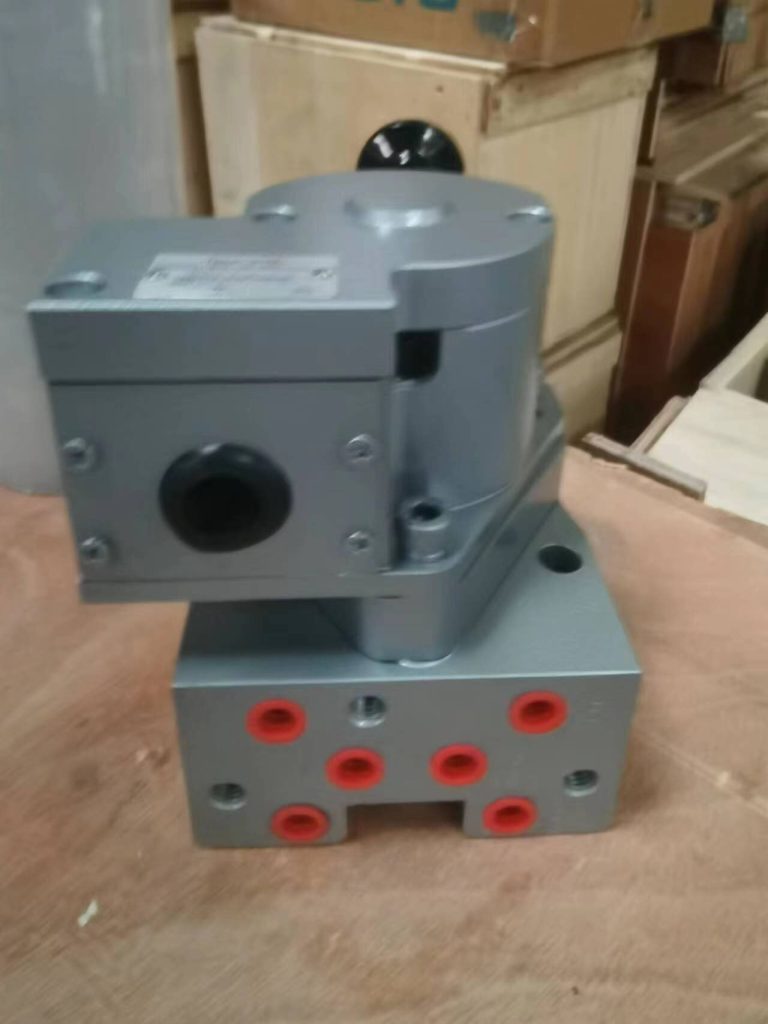

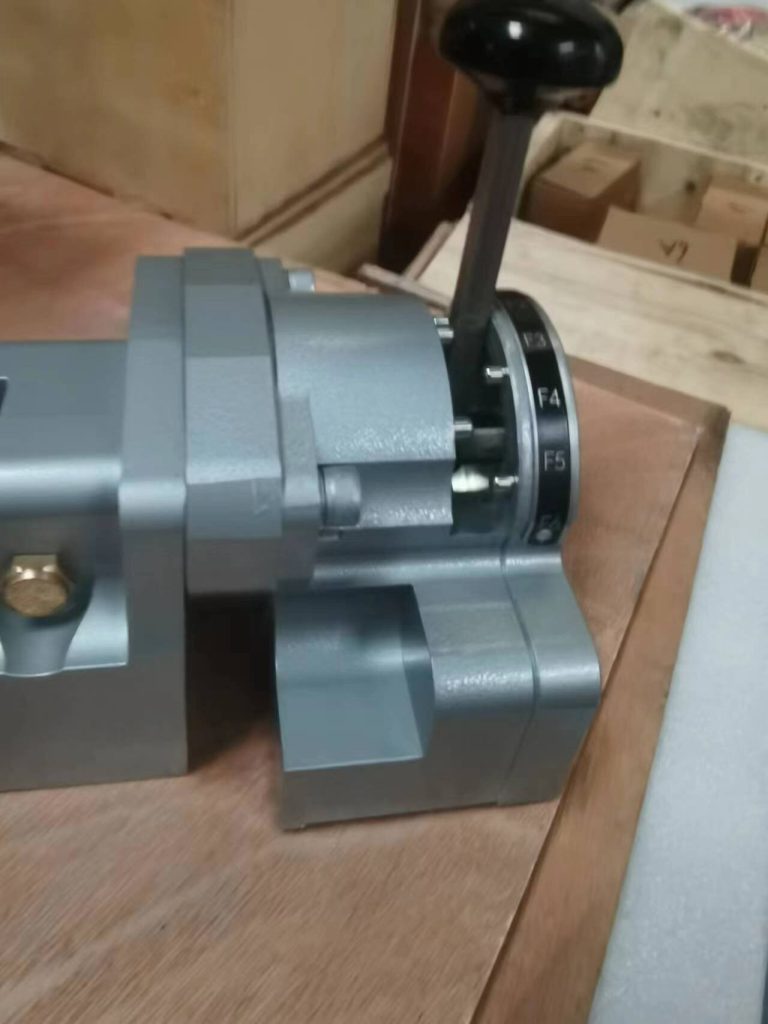

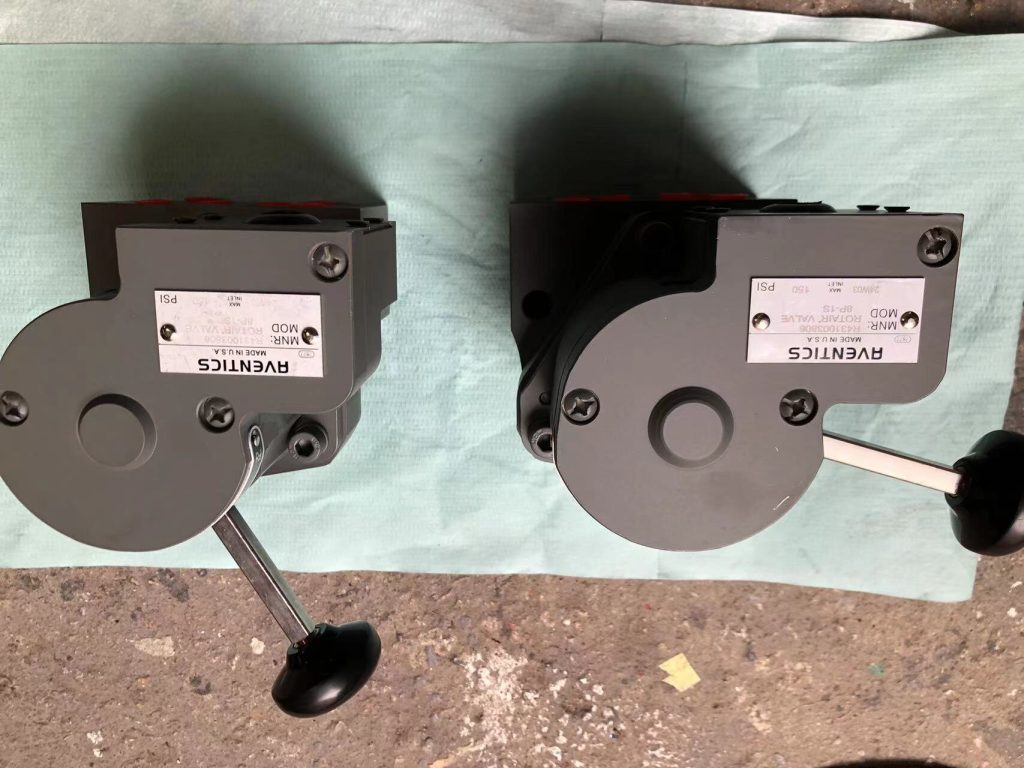

The H-2-X Type Controlair Valves are handle operated
4-way, exhausted center, pressure control
valves.
The typical unit contains two directional control 3-way
side valves and a pressure graduating portion that is
arranged to increase, decrease or maintain air pressure
to a separate delivery line. In neutral position,
both 3-way side valves exhaust both delivery lines. A
movement of 10 degrees either side of center position
opens the appropriate side valve and directs
pressure to the indicated outlet port. Continued
movement past 10 degrees up to full travel, or 46
degrees either side of neutral continues to actuate
the pressure graduating portion to deliver a graduated
pressure according to the valve of the control
spring.
