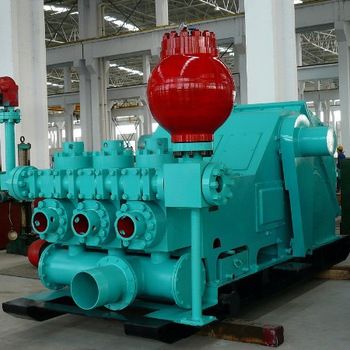

1. F series mud pump has advanced structure, compact, small volume, good performance, and is suitable for drilling technology requirements of high pump pressure and large displacement in oil field.2. F series mud pump has a long stroke, which can be used at a low stroke number to effectively improve the water-loading performance of the mud pump and prolong the life of vulnerable parts at the hydraulic end.Advanced structure of suction air bag, reliable use, mud pump can achieve the best suction effect.
3. F series pump cylinder, crankshaft, herringbone gear and other important parts are made of high-quality alloy steel, the frame is welded with plates, high strength, good rigidity, light weight.
4. F series mud pump has high interchangeability. All vulnerable parts at the hydraulic end are interchangeable with parts of the same specification and model that meet the requirements of API specification.
Quick Details
Warranty:1 YEAR
After-sales Service Provided:Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
Condition:New
Applicable Industries:Energy & Mining
Local Service Location:None
Showroom Location:None
Type:Triplex single action, triplex cylinder single acting piston type
Model Number:F series
Name:F series mud pump
Model:F500, F800, F1000, F1300, F1600
Max liner dia. x stroke mm:170×191, 170×229, 170×254, 180×305, 180×305
Rated stroke r/min:165, 150, 140, 120
Rated power hp:500, 800, 1000, 1300, 1600
Lubrication:Force + splash
Inlet flange:8”, 10”, 12”
Outlet flange:4”, 5”
Valve:API#5, API#6, API#7
Supply Ability
Supply Ability:1000 Set/Sets per Year
