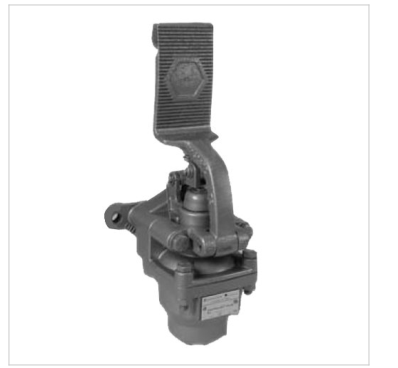

Version H-1-A, OUT port – delivers increasing pressure in direct proportion to pedal
depression.
Qn = 900 l/min
Actuating element Pedal
Internal thread / Internal thread
Poppet valve
Version Poppet valve
Working pressure min./max. 0.1 … 14 bar
Adjustment range min./max. See table below
Ambient temperature min./max. -40 … 70 °C
Medium temperature min./max. -40 … 70 °C
Medium Compressed air
Nominal flow Qn 900 l/min
Hysteresis 0.1 bar
Weight 2.4 kg
