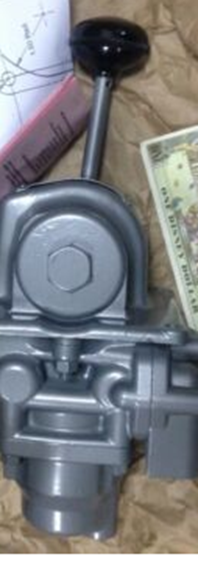

Controlair Valve R431002825/HD-2-FX/P-050970-00004/IA295 0-125PSI

Series H-Controlair®

– Version H-2, OUT port – delivers increasing pressure in direct proportion to clockwise lever

travel from minimum pressure position (facing lever side of valve).

– Qn = 900 l/min

– Actuating element Lever

– Internal thread

– Poppet valve

– H-2-X H-2-FX H-2-LX

Type Poppet valve

Working pressure min./max. 0.1 … 14 bar

Adjustment range min./max. See table below

Ambient temperature min./max. -40 … 70 °C

Medium temperature min./max. -40 … 70 °C

Medium Compressed air

Nominal flow Qn 900 l/min

Hysteresis 0.07 bar

Weight 2.5 kg
