Degasser

Vacuum Degasser is adapted to get rid of various cut-in gases in drilling fluids. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Therefore, it works as one type mud cleaning equipment. As it is placed after the shale shaker, so we call it second stage mud cleaning equipment in mud recycling system. At the same time vacuum degasser can be used as a heavy-power agitator. The vacuum degasser has self-suction function, so it doesn’t need the extra transfer pump to feed the mud. After the impurities been removed, the working efficiencies of subsequent centrifugal pump for desander and deilter would be greatly increased.

Category:

Description

Product Description

Vacuum Degasser is adapted to get rid of various cut-in gases in drilling fluids. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Therefore, it works as one type mud cleaning equipment. As it is placed after the shale shaker, so we call it second stage mud cleaning equipment in mud recycling system. At the same time vacuum degasser can be used as a heavy-power agitator. The vacuum degasser has self-suction function, so it doesn’t need the extra transfer pump to feed the mud. After the impurities been removed, the working efficiencies of subsequent centrifugal pump for desander and deilter would be greatly increased.

Vacuum Degasser

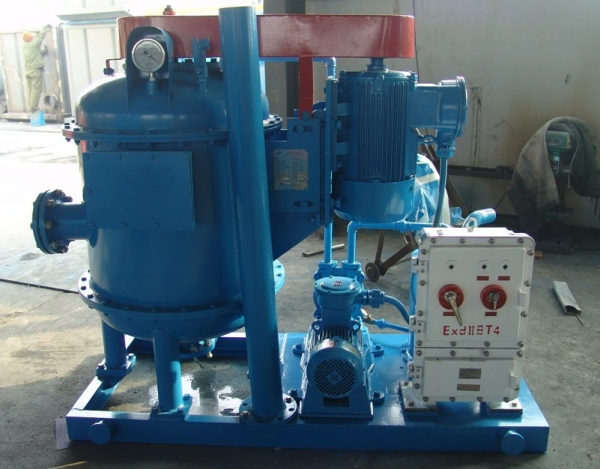

ZCQ series Vacuum Degasser

ZCQ series Vacuum Degasser is a special-purpose device and a new type one for the treatment of gas in the drilling fluids. It can get rid of various gas of invasive drilling quickly. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Also, at the same time vacuum degasser can be used as a heavy-power agitator and supported applicable to all types of mud circulation purification system. The vacuum degasser design of the structure is scientific and rational. So we are able to achieve an effective gas-liquid separation, filter out impurities and to ensure that the exhaust pipe is always smooth.

ZCQ series Vacuum Degasser Technical Parameters

Model  ZCQ270 ZCQ360
Main diameter  800mm  1000mm
Capacity   ≤270m3/h   ≤360m3/h
 Vacuum  0.030~0.050Mpa  0.040~0.065Mpa
 Ratio  1.68  1.72
 Efficiency  ≥95%  ≥95%
Motor power   22KW   37KW
Vacuum Power  3KW  7.5KW
 Rotary speed   870r/min   880r/min
 Dimension  2000×1000×1670mm  2400×1500×1850mm
 Weight  1350kg  1800kg

Vacuum degasser for drilling fluids solids control:

Vacuum Degasser is also called mud/Gas separator. Mud/gas separators (Degasser) is  the first units of solids control equipment arranged to treat drilling mud. As such, they process all of the drilling mud from the flow line before the mud reaches the primary shale shakers. The units have no moving parts and rely on the density difference between the gas and the mud for removal. The process is simple, yet very effective for well drilling fluids processing system.
Vaccum Degasser  is used to remove the small entrained gas bubbles left in the mud by the mud/gas separator. These units are positioned downstream from mud/gas separators, gumbo removal equipments (if utilized), shale shakers and mud conditioners (if utilized), while hydrocyclone desander and Decanting centrifuges follow in the arrangement.
