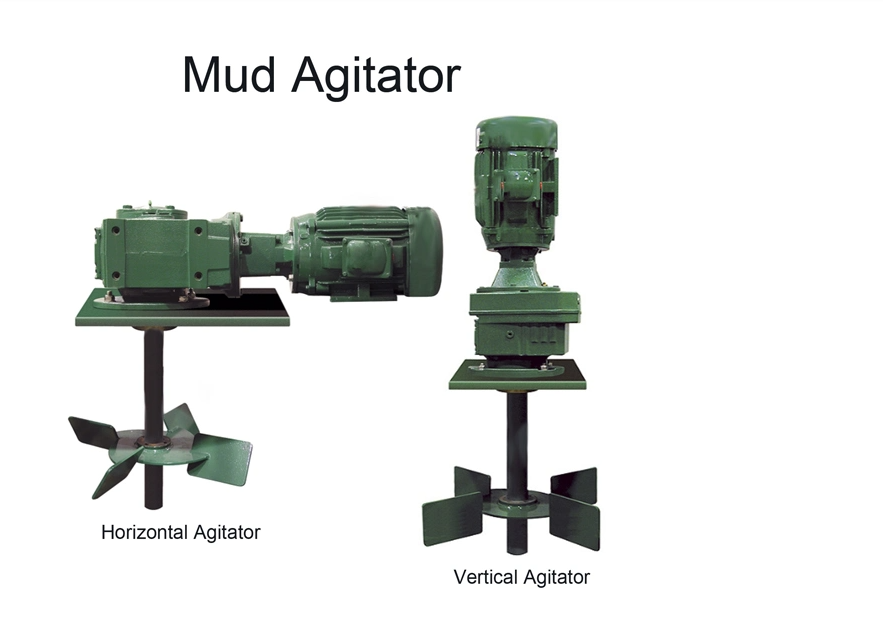

Mud Agitator

Mud agitator is used in surface mud system to suspend solids and maintain homogeneous mixture throughout the system Amechanical agitator is driven by an explosion-proof motor, coupled to a gear box that drives the impeller shaft. The impellers transform mechanical power into fluid circulation or agitation. The objective is to obtain a uniform suspension of all solids.

Category:

Description

Mud agitator is used in surface mud system to suspend solids and maintain homogeneous mixture throughout the system Amechanical agitator is driven by an explosion-proof motor, coupled to a gear box that drives the impeller shaft. The impellers transform mechanical power into fluid circulation or agitation. The objective is to obtain a uniform suspension of all solids.

Mud Agitator

JBQ series Mud agitator

JBQ series mud Agitator, Less than 5.5 kW drilling mud Agitator adopts the blender cycloid speed reducer, and it is applied to the drug liquids mixing tank. This mud agitator  has the advantage of compact structure  so it occupies small area. More than 7.5 kW Mud Agitator uses the turbo and worm gear speed reducer, with the large torque transmission、 the  revolution is steady、it works reliablely and has great merit. Common   model of mud agitator is JBQ5.5kW 、JBQ7.5kW 、JBQ11kW and JBQ15kW.The drilling mud agitator is an important components for Solids Control drilling fluids processing system.

JBQ Mud Agitator Technical Parameters:

Agitator Model JBQ5.5 JBQ7.5 JBQ11 JBQ15
Motor Power  5.5KW(7.5hp)   7.5KW(10hp)   11KW(15hp)   15KW(20hp)
Impeller Speed  60/72RPM  60/72RPM  60/72RPM  60/72RPM
Impeller Dia(Single)  600mm  850mm  950mm  1050mm
Impeller Dia(Double)  N/A  Up:750mm
Down:650mm		  Up:850mm
Down:700mm		  Up:950mm
Down:750mm
 Ration  25:1  25:1  25:1  25:1
Dimension(L*W*H)  870*600*480mm  906*600*480mm  1075*650*525mm  1170*720*565mm
Shaft Length  According to tank inner depth
Electric Specs  380V/50HZ Or 460V/60HZ Or Customized
 Remarks Explosion Proof motor
Shaft stabilizer Available
Impeller Diameter Customization Available

As a professional manufacturer for soilds control equipments, we have designed lots of high-quality products, and JBQ series Agitator is one of them. To keep both the mud uniformity and the suspension of solids, the mud agitator is used to agitate the mud consecutively and reliably. This agitator agitates the mud to make cuttings, silt and sand pass the solids control system without being precipitated onto the tank bottom. Due to the simplex turbine decelerator, this product is featured by compact construction, light weight, balanced transmission, low noise, high efficiency of transmission and strong agitating power. Therefore, it is a reliable product in the solids control system.
