Product Description

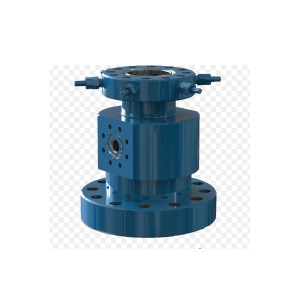

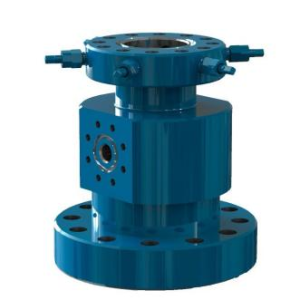

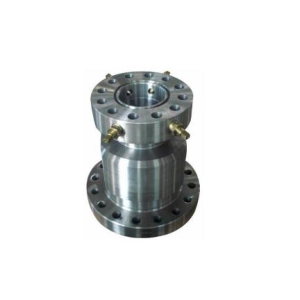

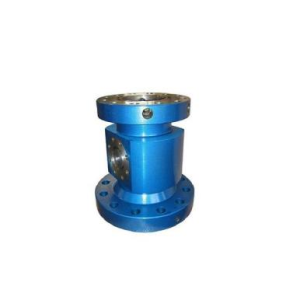

The casing head is a kind of part of connecting casings and wellheads. It is used to support the weight of technical casing and intermediate casing and seal the annular space between the casings, which provides a transition joint for the installation of the tubing head, Christmas tree and other wellheads. The two-side-outlet design allows the casing head to supply cement, monitor and control well’s sinking, and inject balance liquids etc.
Specification of single-stage casing head:
| Pressure Ratings (Mpa) |
Top Flange (in) |
Surface Casing (in) |
Production Casing (in) |
| 35 | 13-5/8 | 13-3/8 | 7 |
| 35 | 13-5/8 | 13-3/8 | 5-1/2 |
| 35 | 13-5/8 | 9-5/8 | 7 |
| 35 | 13-5/8 | 9-5/8 | 5-1/2 |
| 21 | 13-5/8 | 13-3/8 | 7 |
| 21 | 13-5/8 | 13-3/8 | 5-1/2 |
| 21 | 13-5/8 | 9-5/8 | 7 |
| 21 | 13-5/8 | 9-5/8 | 5-1/2 |
| Top flange | Surface casing | Intermediate casing | Production casing |
| 11″-35MPa | 13 3/8″ | 9 5/8″ | 7″ |
| 5 1/2″ | |||
| 11″-70MPa | 13 3/8″ | 9 5/8″ | 7″ |
| 5 1/2″ | |||
| 11″-105MPa | 20″13 3/8″ | 9 5/8″ | 7″ |
| 5 1/2″ | |||
| 13 5/8″-35MPa | 13 3/8″ | 9 5/8″ | 7″ |
| 5 1/2″ | |||
| 13 5/8″-70MPa | 13 3/8″ | 9 5/8″ | 7″ |
| 9 5/8″ | |||
| 13 5/8″-105MPa | 20″ | 13 3/8″ | 7″ |
| 5 1/2″ |
